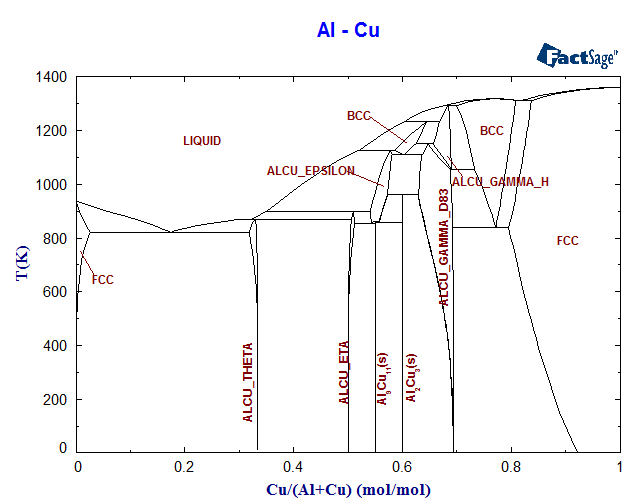

Al-Cu Phase Diagram
[2004Wit]
The Ag-Al-Cu system Part I: Reassessment of the constituent binaries on the basis of new experimental data,
V.T. Witusiewicz, U. Hecht, S.G. Fries, S. Rex,
Journal of Alloys and Compounds, 385 (2004), 133-143.
Database for FactSage (registration required)
[COST 507]
Thermochemical Database for Light Metal Alloys,
I. Ansara, European Commission, Directorate-General XII, Science, Research and Development, 1994
This can be downloaded from OpenCalphad package at
https://www.opencalphad.com/
GitHub
https://github.com/sundmanbo/opencalphad
FactSage Database
Data for this system are also available in the following standard databases for FactSage:
- FactSage 8.3
- FScopp, FSstel, FTlite, SGTE2017, SGTE2020, SGTE2022
- FactSage 7.0
- FSstel, FTlite, SGTE2007, SGTE2011, SGTE2014
