How to Use: Phase Diagram

Example

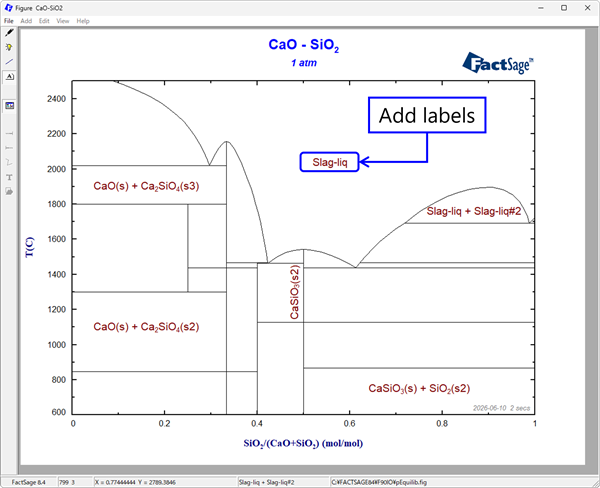

Perform a phase diagram calculation for the binary CaO-SiO₂ system to analyze phase equilibria and stability.

Operation Steps

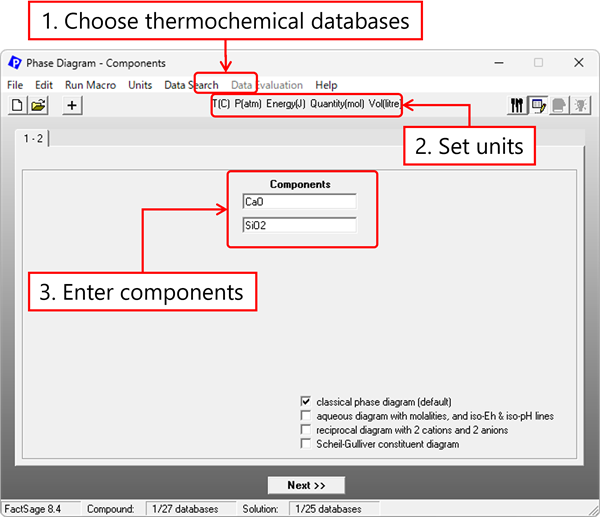

1. Input Reactants: Enter the starting substances comprising the system.

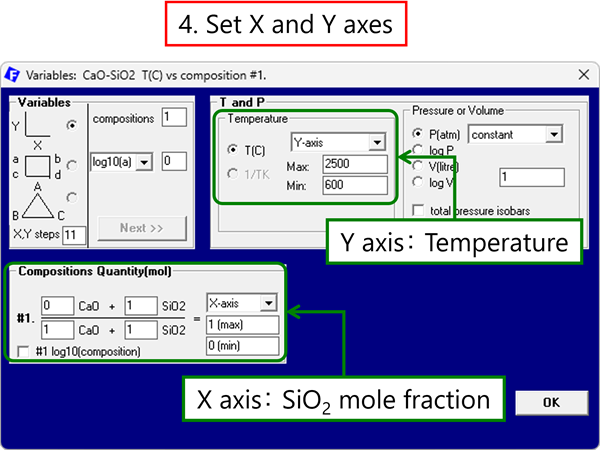

2. Set X and Y Axes: Define the variables for both the X and Y axes.

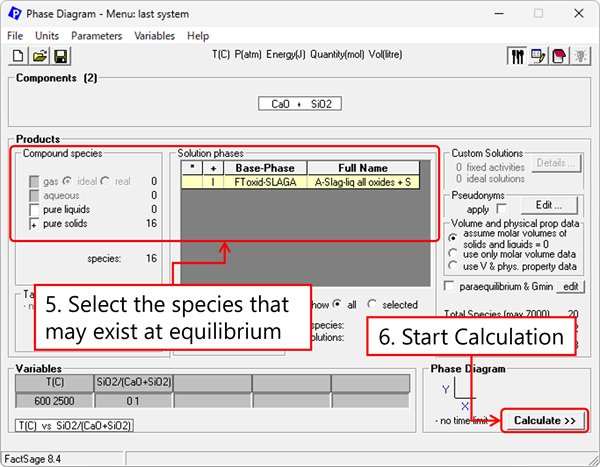

3. Run Calculation: Select the potential phases that can exist at equilibrium and execute the calculation.

User Interface
